← Twin Sketch showcase
EON Universal · Mirror Direct

A drawing. Then photographs.
Then the real thing.

Three steps, one format: what goes in on the left, what comes out on the right — live in your browser — and what each step is honestly worth, stated underneath. The first two are stepping stones. The destination is Mirror Direct.

1

Start with the drawing · a twin from a P&ID sheet

In  ·  the drawing
The as-built terminal P&ID, one sheet
A full dispatch terminal — one as-built P&ID sheet
Out  ·  the twin, live in your browser
The terminal as a walkable 3-D twin
Open to explore → 635 named parts from one drawing
In  ·  the drawing
The training skid P&ID
A training skid — one P&ID sheet
Out  ·  the twin, live in your browser
The training skid as a walkable 3-D twin
Open to explore → 82 parts, tagged from the sheet
ProVery fast — minutes from a drawing.
ConYou need a P&ID — and the arrangement is illustrative: the parts are not standing where they really stand.
2

Then just pictures · no drawing at all

In  ·  the photographs
The four confirmed photographs of the left skid — front, left, back, right
Walk-around photographs of the left skid — no P&ID, no tape measure
Out  ·  the primitives twin, live in your browser

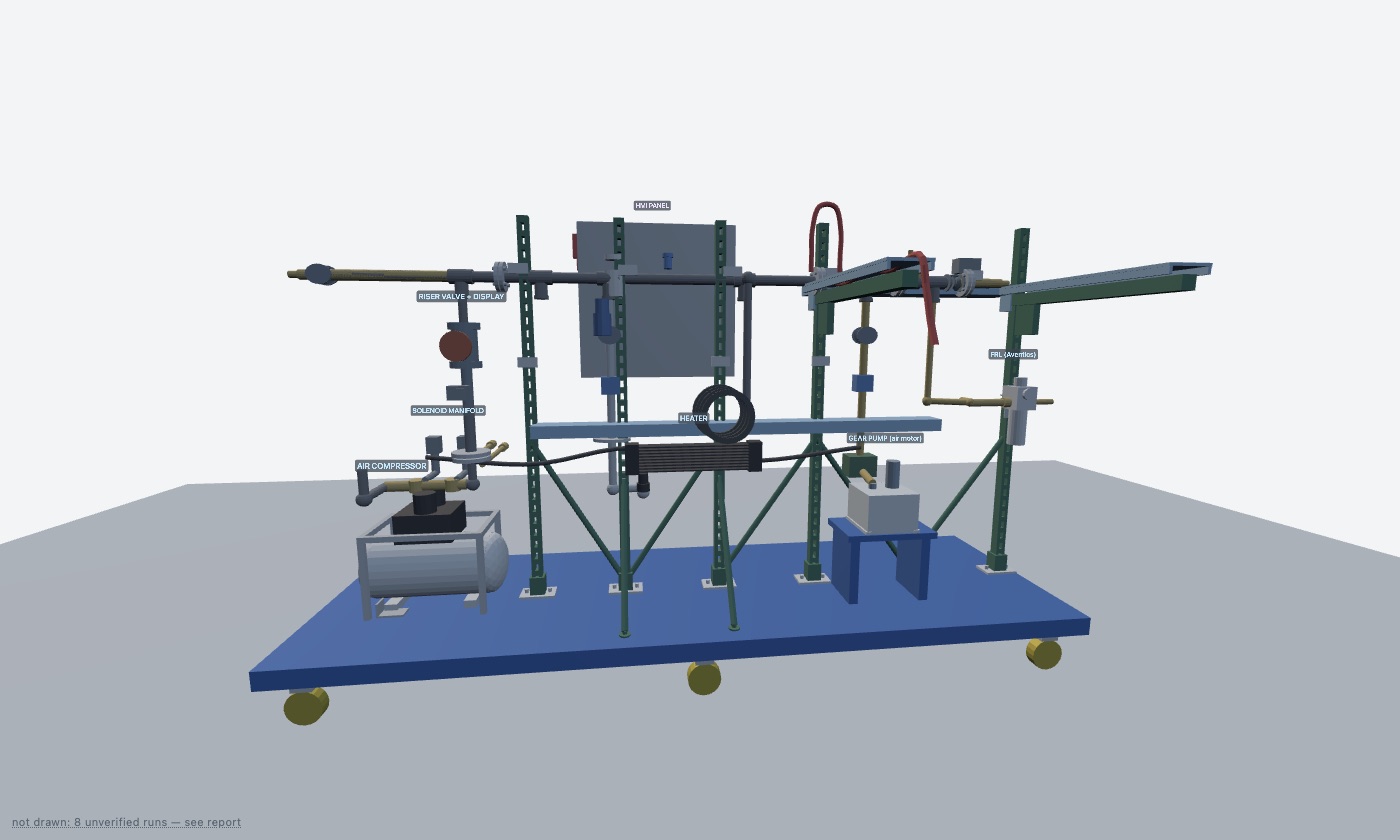

The left skid as a labeled twin in primitives
Open to explore → the left skid in labeled primitives, from pictures alone
ProAlso fast — and you get the right locations and the right scale from pictures alone.
ConNo real 3-D objects yet — and the matching is not perfect.
The destination
3

The real thing · Mirror Direct

In  ·  the photographs
The same four confirmed photographs of the left skid
The same photographs — nothing else added
Out  ·  the Mirror Direct twin, live in your browser
The LS twin with its six real cast bodies
Open to explore → metric · six real cast bodies · photo-beside-twin compare
The honesty rule Every part states whether it was measured or guessed — click any part and its basis text opens. What the photographs cannot establish is counted, never silently drawn.

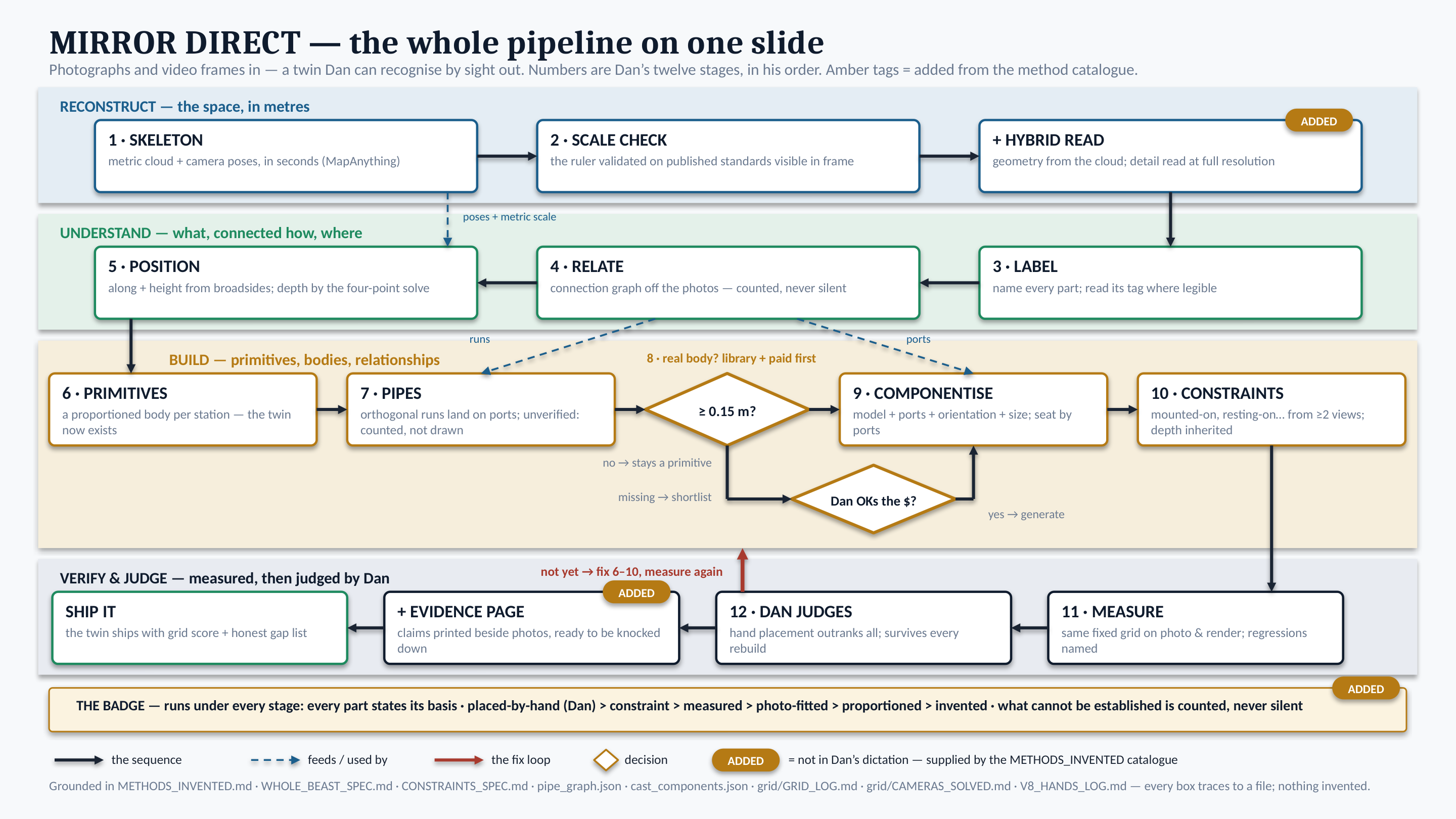

The Mirror Direct pipeline — four bands, twelve stages, on one page
The Guide

How Mirror Direct works — four bands, twelve stages, in plain words

The whole pipeline on one page: how the metres get into the model, how the pipes are read off the photographs, when a primitive earns a real body, and why every part carries a badge saying where its size and position came from.

Read the Guide →
